Xingyi GX 580

Xingyi GX 580

Regular price $9,400.00 CAD
Regular price Sale price $9,400.00 CAD
Sale

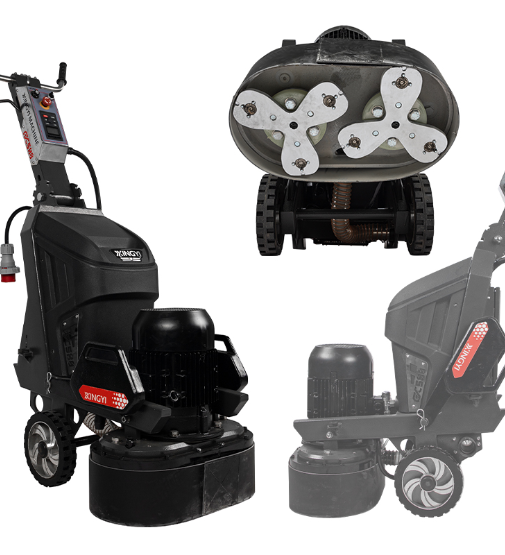

The GX580 from XINGYI is a high-performing, two-head rotary grinding machine known for its power, reliability, and versatility. Designed to handle a wide range of surface preparation tasks, the GX580 is compatible with PCD tools, grinding segments, polishing pads, and bush hammers—making it a go-to solution for both rough grinding and fine polishing applications.

With its robust design and enhanced features, the GX580 delivers excellent results across concrete grinding, coating removal, and floor polishing projects. It's especially effective when used with bush hammers, which are ideal for removing old coatings, creating textured anti-skid finishes, and preparing surfaces for new applications.

Whether you're tackling heavy-duty removal or aiming for a refined polished finish, the GX580 offers the performance and flexibility professionals can rely on.



Model GX580
Working Width 570 mm
Motor Power 5.5 kW / 7.5 kW
Voltage Options 380–480V 3P / 200–240V 3P / 200–240V 1P
Frequency 50/60 Hz
Rotating Speed 350–1680 rpm / 350–1500 rpm
Grinding Disc Ø310 mm × 2
Operation Mode Walk-behind
Water Tank Capacity 25 L
Weight 218 kg / 228 kg
Dimensions (L×W×H) 1544 × 580 × 1082 mm
