Scanmaskin WS 32
Scanmaskin WS 32
Couldn't load pickup availability

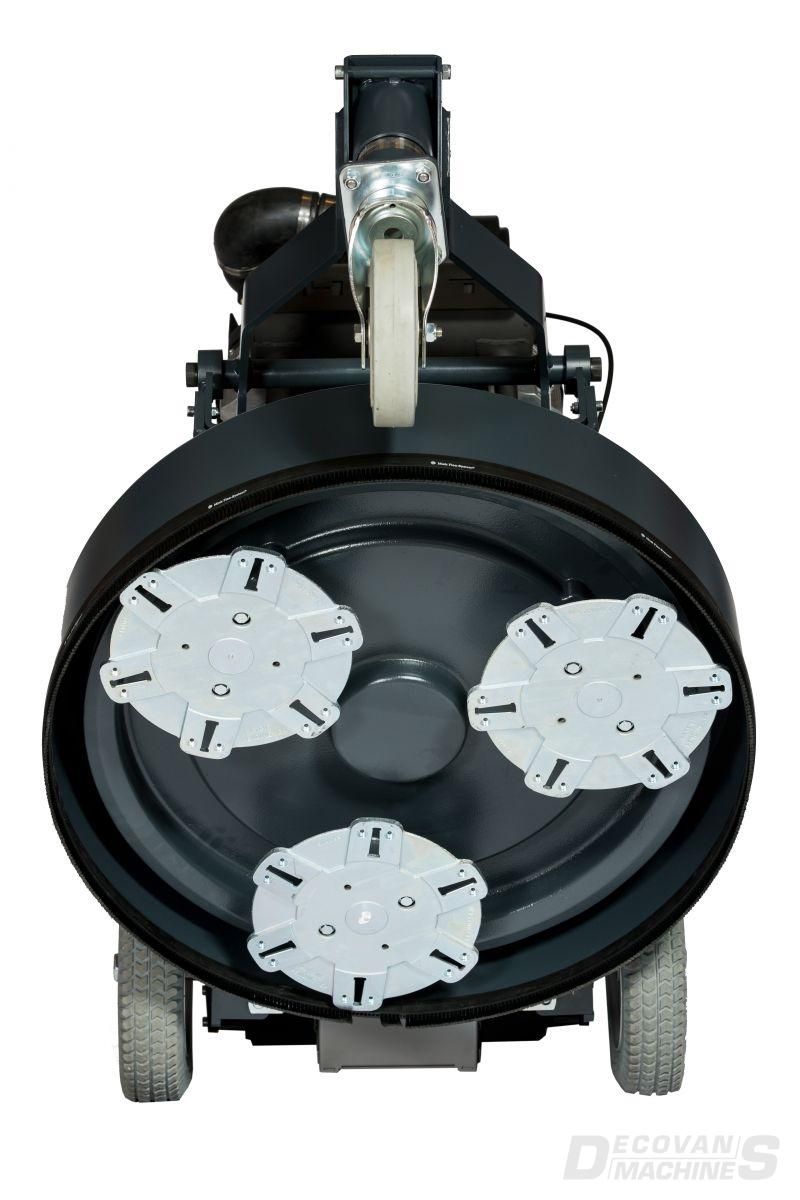

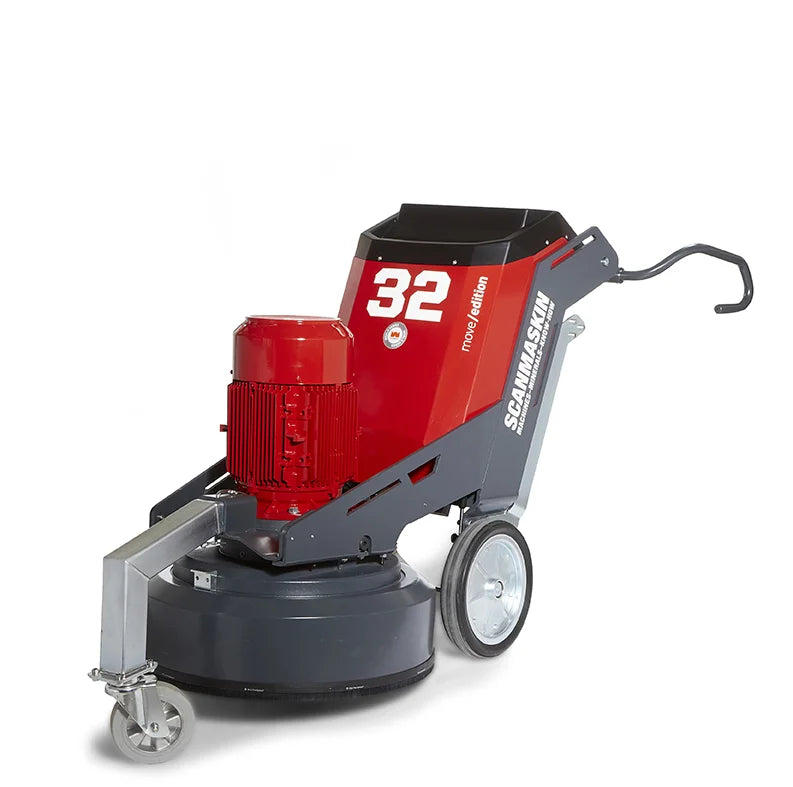

The Scanmaskin 32 World Series Move Edition represents the next step in ergonomic floor grinding, developed with direct input from operators to deliver unmatched comfort and usability. Building on the robust and durable World Series line, this model features a cast planetary gear system known for its longevity and reliability.
The simplified design enables quick and easy repairs on common service parts, minimizing downtime and helping you get back to work faster. The newly designed handle offers two adjustment points and 360-degree rotation on the hand grip, providing excellent hip support and customizable high and low positions to fit any operator’s needs.
The motor has been thoughtfully redesigned to be 50 lbs lighter without sacrificing power, enhancing maneuverability and reducing operator fatigue. A detachable front wheel improves ground clearance and ease of transport, while the upgraded ergo solid wheels with larger diameters reduce resistance by up to 40%, making movement effortless.
Experience enhanced comfort, durability, and efficiency with the World Series Move Edition — engineered for professionals who demand the best.
| Feature | Model 28” | Model 32” |
|---|---|---|
| Voltage | 200–240 V 3~ / 400–480 V 3~ | 200–240 V 3~ / 400–480 V 3~ |
| Motor Power | 11 kW | 15 kW |
| Current | 50 Amp | 32 Amp |
| Frequency | 50–60 Hz | 50–60 Hz |
| Grinding Speed | 200–825 rpm | 200–825 rpm |
| Grinding Discs | 3 × 280 mm (3 × 11”) | 3 × 280 mm (3 × 11”) |
| Grinding Width | 700 mm (28”) | 800 mm (32”) |
| Weight | 550 kg (1,212 lbs) | 570 kg (1,256 lbs) |
| Grinding Pressure | 315 kg (694 lbs) | 325 kg (716 lbs) |
| Water Tank Capacity | 20 L (5.3 US gallons) | 20 L (5.3 US gallons) |
