Scanmaskin Scandust 9000

Scanmaskin Scandust 9000

Regular price $19,690.00 CAD
Regular price Sale price $19,690.00 CAD
Sale

Out of stock

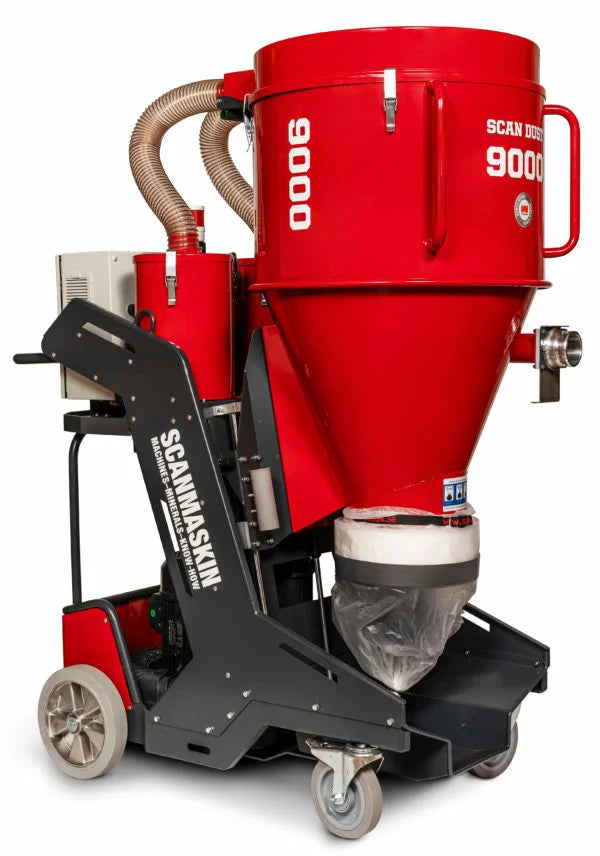

scaThe Scanmaskin 9000 World Series is our largest and most powerful industrial dust collector, designed for maximum efficiency. It features expanded filter capacity and an integrated, patented two-stage pre-separator that captures up to 90% of dust before it reaches the filters. This significantly reduces filter cleaning frequency, extends filter life, and minimizes maintenance interruptions. With the pre-separator built directly into the unit, there’s no need for additional external equipment—making setup, transport, and operation simpler and more efficient.

Technical Specifications

Feature Details
Voltage 400–480 V, 3~
Motor Power 7.5 kW / 10 hp
Current 16 Amp
Max Airflow 460 CFM / 782 m³/h
Max Vacuum 90 in / 225 mbar
Hose 33 ft x 3” and 33 ft x 2” (10 m x Ø76 mm and 10 m x Ø50 mm)
Inlet Ø3” Camlock / Ø76 mm
Primary Filter 32 teflonated polyester sock filters, 4.2 m², FT 99.5%
Micro Filter HEPA 14, 2 x 3.9 m², 99.995% efficiency
Filter Cleaning Semi-automatic JetPulse system
Sound Level 85 dB(A)
Dimensions (L x W x H) 59” x 29” x 74”/70”/62” (1500 x 750 x 1990/1880/1590 mm)
Height Adjustments 74” / 70” / 62” (1990 / 1880 / 1590 mm)
Weight 340 kg / 750 lbs
Frequency 50 Hz / 60 Hz
